Brand New STEYR M16 SCI 200kW/272hp 3.2-liter inline 6-cylinder diesel engine developed by Steyr Motors
Total: 262 units
MADE IN USA
M16 SCI 200 kW Diesel Engine
Retail Price: 9 723.63 EUR per pcs.
Price: 7 100 EUR per unit
EXW Germany
Key Features:
Power & Torque: 200 kW (272 HP) with 610 Nm of torque at 1550 rpm
Charging System: 2-stage sequentially charged intercooling for optimal efficiency
Fuel Compatibility: Supports EN590 diesel and Jet A-1 (NATO code F-35), with other fuel types available on request
Operational Range: Functions in extreme temperatures from -32°C to +49°C
Weight & Design: Lightweight at 280 kg (dry), featuring a monoblock design for enhanced cooling and durability
Applications: Compatible with ZF8HP90 and Allison S1000/S2000/S2500 transmissions
Primary Applications:
Military Vehicles – Ideal for armored personnel carriers, tactical trucks, and amphibious vehicles
Industrial Equipment – Suitable for heavy-duty machinery, including construction and mining vehicles
Specialized Transport – Designed for off-road and emergency response vehicles
Custom Engineering – Adaptable for marine propulsion systems and hybrid power solutions.
These engines are the remaining stock from an original production batch of 1,200 units, originally manufactured for use in armored APC platforms.
Shipping Requirements:
6 x 40’ and 1 x 20’ containers will be required for the engines.
Each 40’ container accommodates 48 engines.
An additional 2 x 40’ containers will be allocated for spare parts and components—valued at over 185 000 EUR, which we’re offering at no extra charge.
Technical Details:
Manufacturing Years: 2016–2018.
All engines share the same specification and production standard, which remains unchanged in current production runs.
Units are sealed and stored in a humidity-controlled warehouse to ensure optimal preservation.
Fuel Pump: Electronic control type.

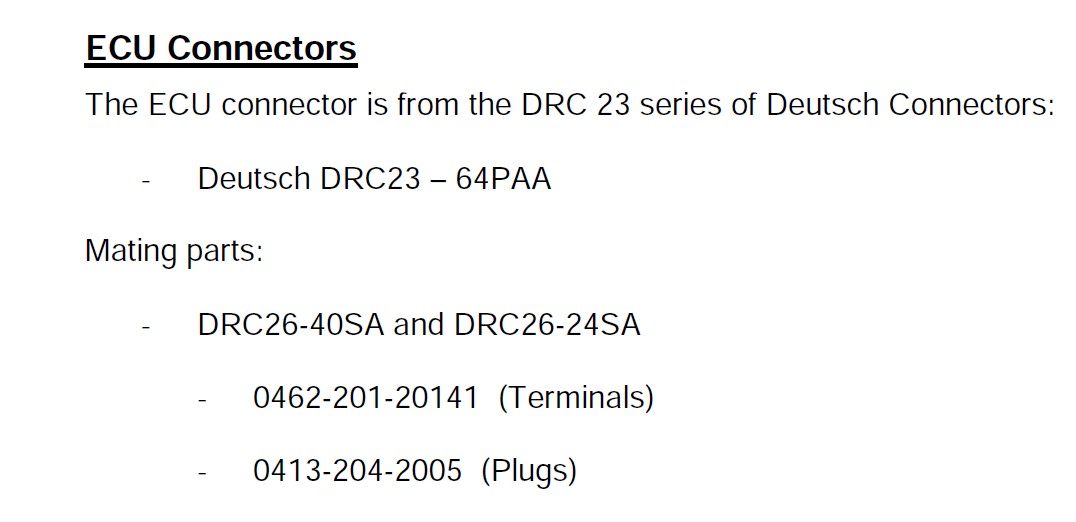

For connector reference, please note that Deutsch is now part of TE Connectivity.
Relevant examples:
DRC26-40SA
DRC26-24SA

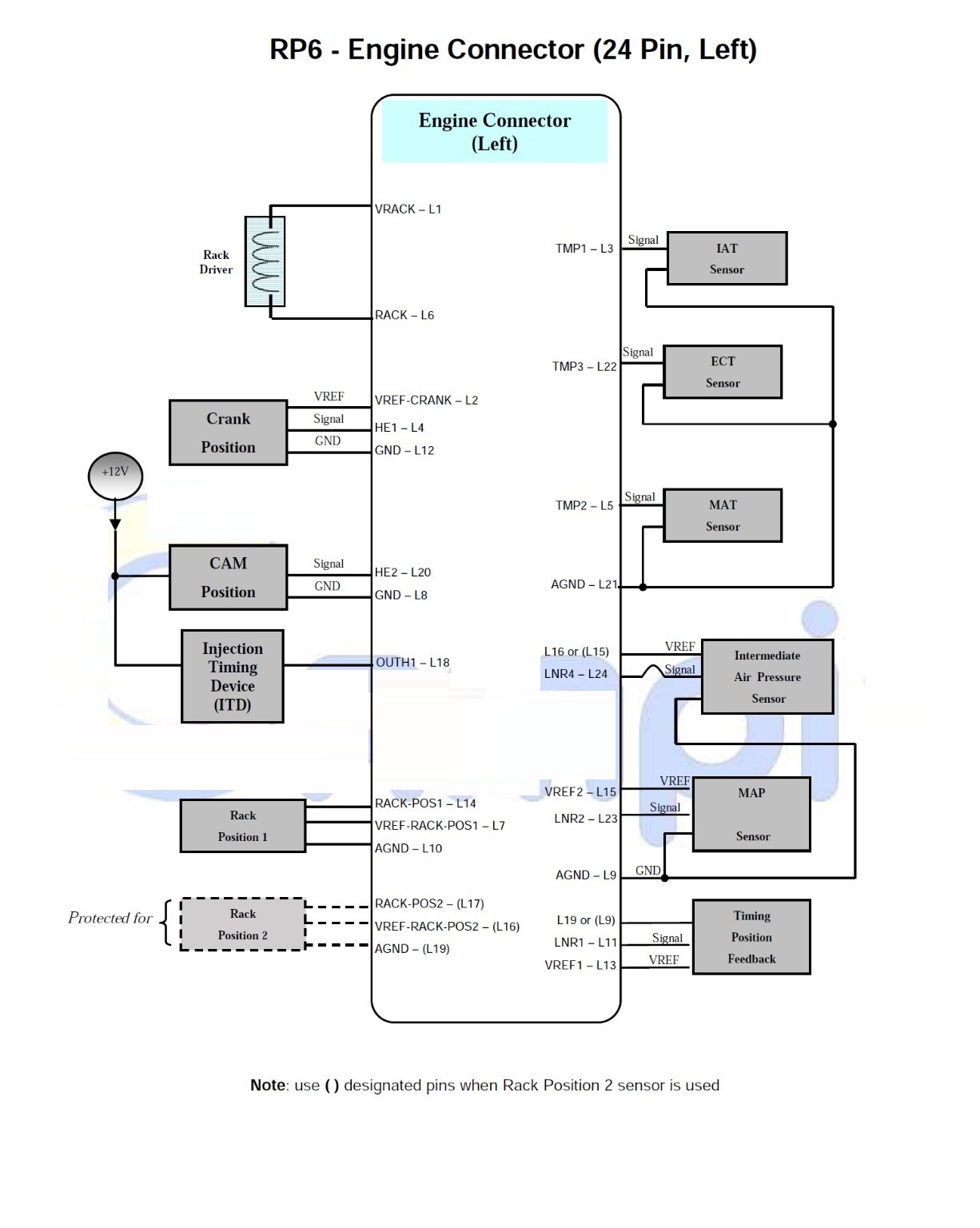

Additionally, I’ve attached simplified wiring diagrams in PDF format, which may assist further.
If you are interested in buying this stock offer or you have any questions feel free to contact us.
